SPECIFICATIONS

BURNER CONSUMPTION (6x) 0.56 kg/h
OVEN CONSUMPTION 0.6 kg/h
TOTAL GAS CONSUMPTION 3.96kg/h
BTU RATING 156 000 + 27 000
DIMENSIONS 915 x 815 x 910mm high
(+ 515mm splashback)
WEIGHT 185kg
GRATE DIM (6x) 300 x 300mm
OVEN INTERNAL DIM 670 x 660 x 355mm high
OVEN GRID SUPPLIED (1x) 665 x 642mm
RUNNER SPACING 40mm
TEMP RANGE 80 to 280°C

FEATURES

• Exterior body manufactured from 304 Stainless steel
• Enamel oven interior for easy cleaning
• Standby pilot flame on each burner
• Removable drip trays provided under burners to catch grease drippings
• Flame failure protection valves

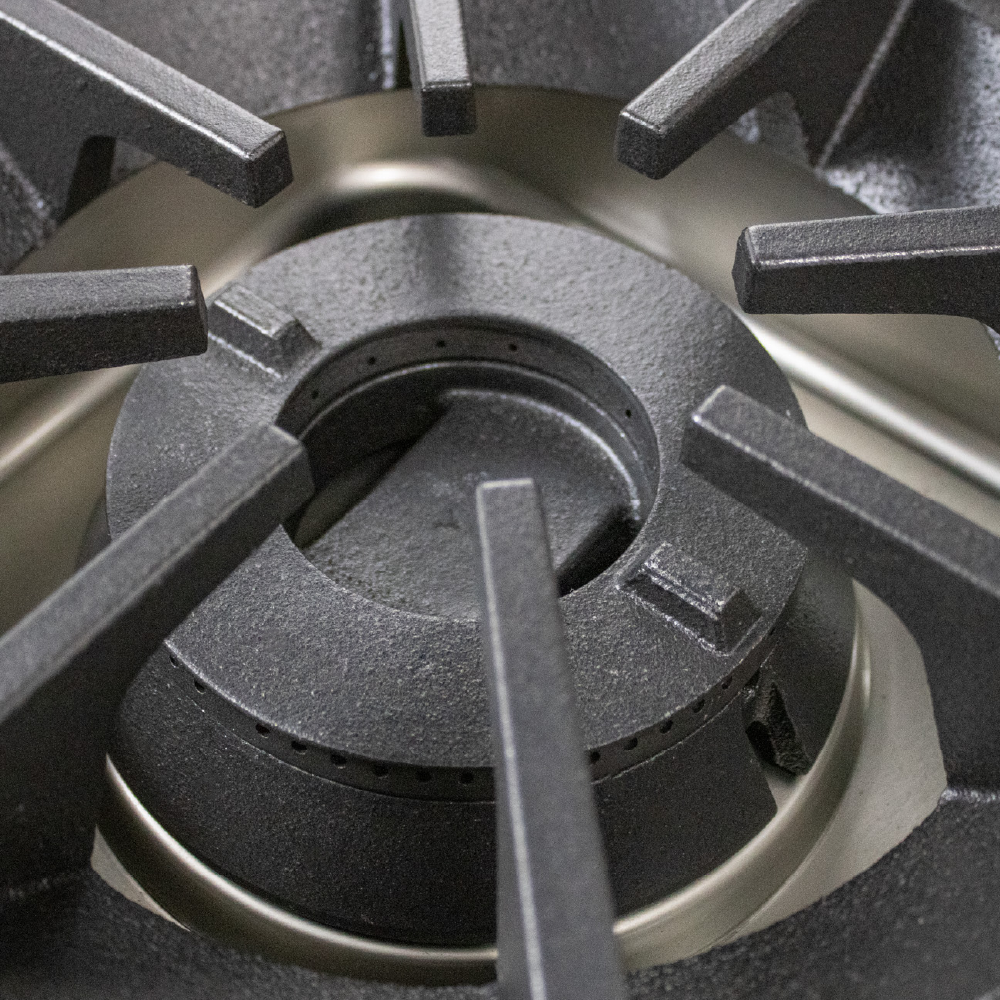

• Improved 2 piece burner assembly protects the pilots for easy cleaning
• 3/4” NPT rear gas connection and regulator provided
• Stainless steel kick plate & 515mm splashback with top shelf
• Supplied with 1 chrome oven rack
• Fitted with device leveling legs (Front) and swivel castors (Rear)

LPGSA Approved
