SPECIFICATIONS

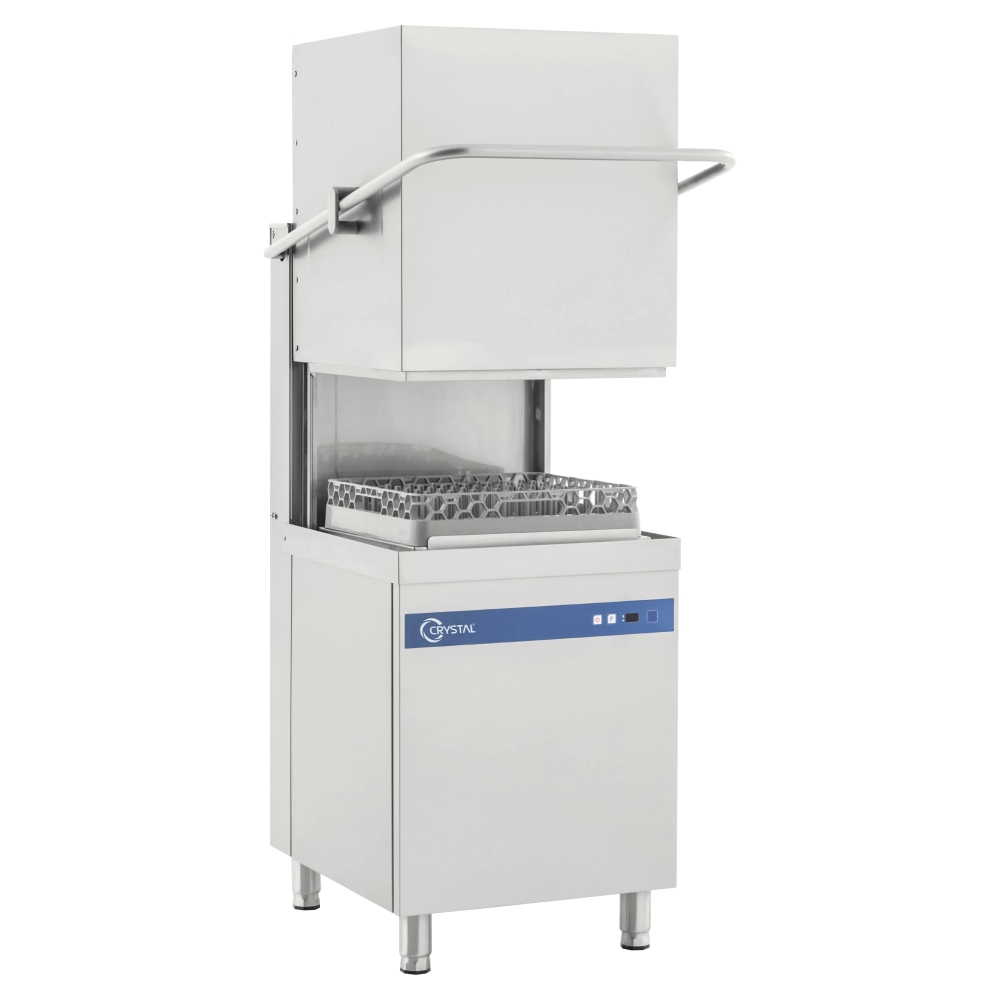

MODEL Crystal CRWD1000
ELECTRICITY 9.7kW, 380V, 3 Phase + N
DIMENSIONS 610 x 730 x 1460mm high
610 x 730 x 1950mm high (open)
WEIGHT 95kg
MAX GLASS HEIGHT 380mm high
CYCLE TIME 60 ~ 240 seconds
CYCLES PER HOUR 15 ~ 60
HOURLY OUTPUT Up to 2000 glasses
Up to 1000 dishes

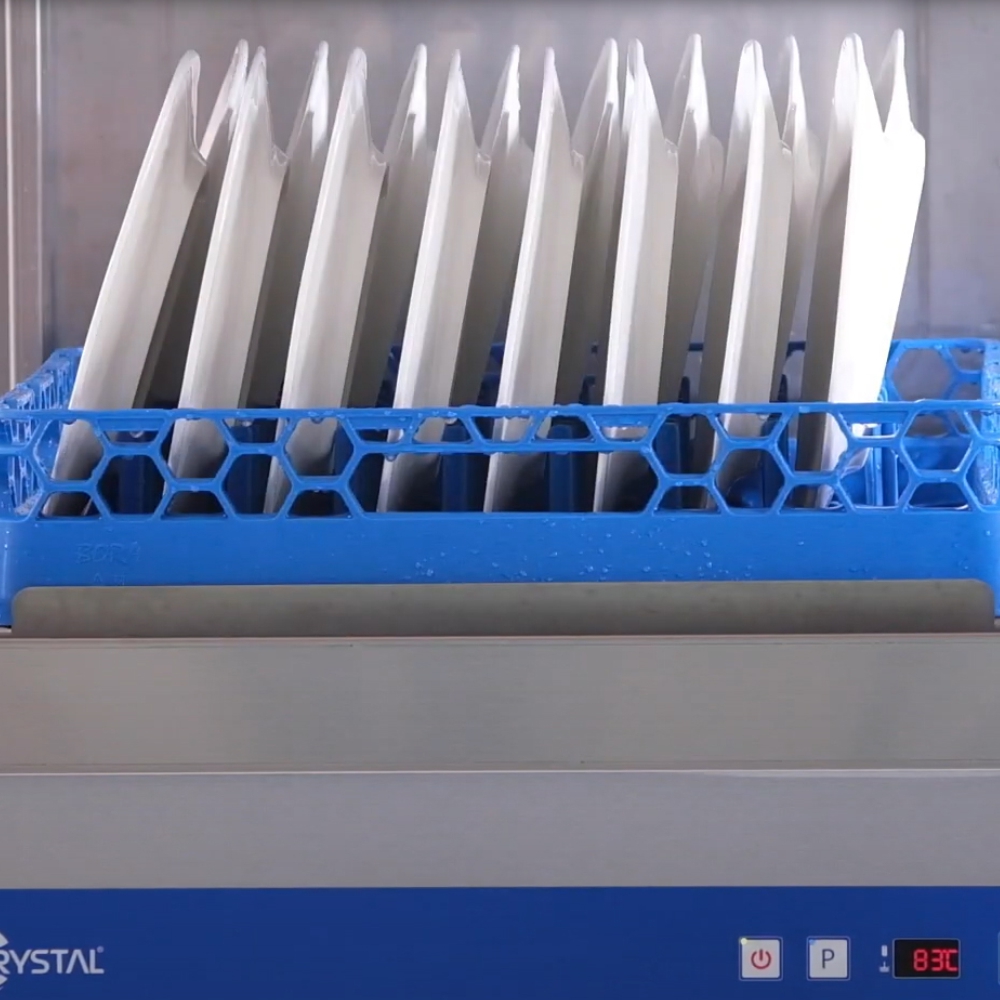

BASKET DIMENSIONS 500 x 500mm
BASKETS SUPPLIED (1x) All Purpose / Plate Dish Rack
(1x) Open Bowl Dish Rack
BOILER CAPACITY 7Lt
WASH TANK CAPACITY 45Lt
WASH TANK TEMP 55°C
RINSE TEMP 80 ~ 85°C

FEATURES

• AISI 304 stainless steel body and digital control panel

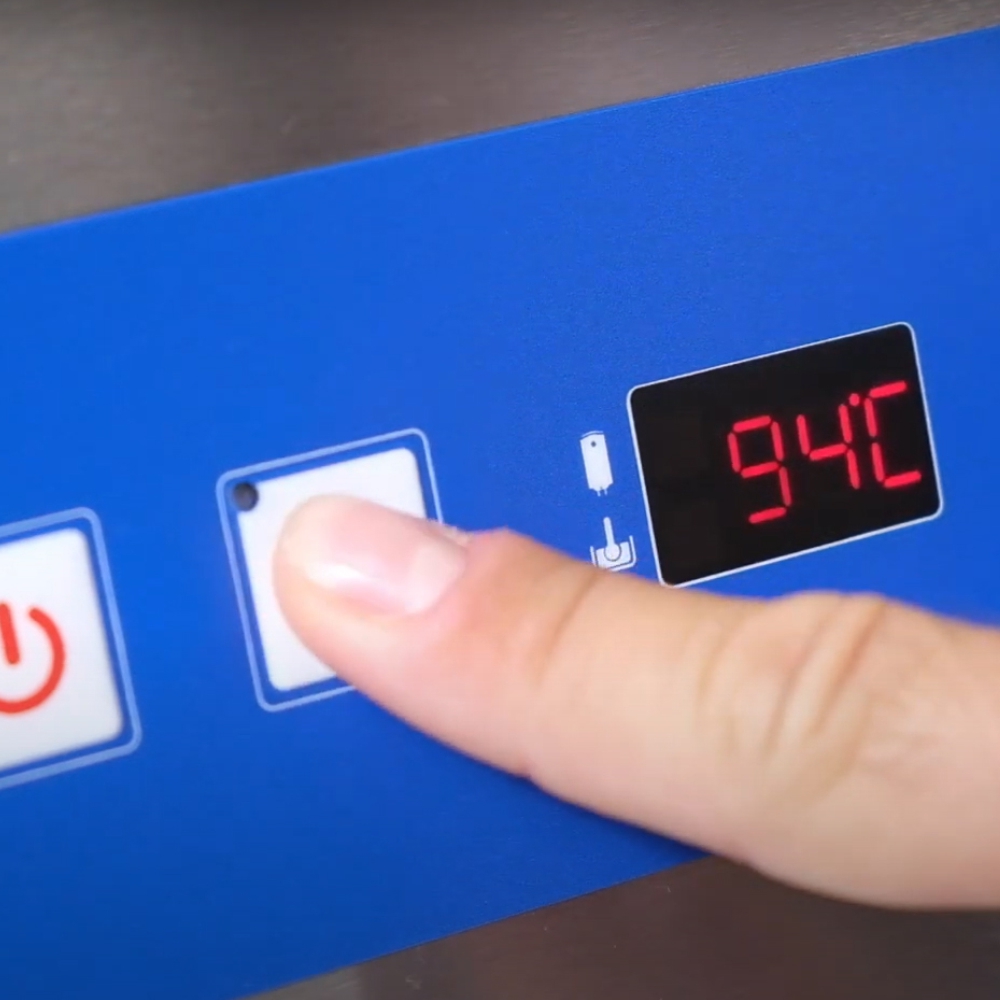

• Instant display of tank and boiler water temperatures
• 5 different washing programs, adjustable to 60-90-120-180-240 seconds
• 1 dishwashing basket consumes 3 liters of water
• EPDM rubber hose substance conforming to Food Codex standards
• Effective washing results with a specially designed washing and rinsing arms structure
• Thanks to a specially-designed card technology, the rinsing process does not start before the boiler water temperature
  reaches 85°C. This guarantees hygienic rinsing according to HACCP standards
• Automatic pause and resume feature when opening or closing the door
• 9 kW boiler heating element, 4,5 kW tank heating element
• Front cover allows easy technical service without moving / dragging the product around
