SPECIFICATIONS

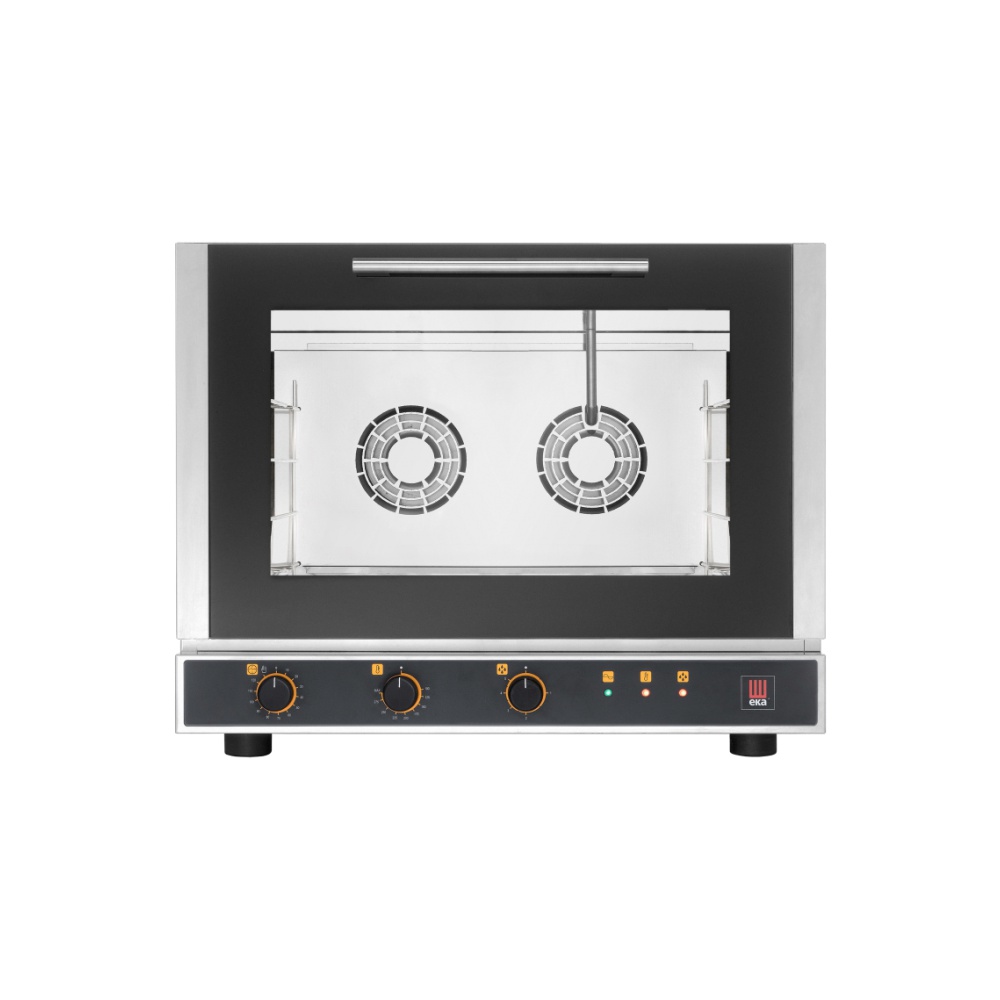

MODEL EKA EKF 416 UD
ELECTRICITY 6.4kW, 380V, 3 Phase + N
DIMENSIONS 790 x 785 x 635mm high
WEIGHT 57kg
CHAMBER DIMENSIONS 660 x 430 x 380mm high
CAPACITY (4x) 1/1 GN pans
(4x) 600 x 400mm trays
RUNNER SPACING 73mm
TEMP RANGE 30 to 270°C

FEATURES

• Outer casing manufactured from stainless steel
• Cooking chamber is manufactured from 1mm thick, moulded, AISI 304 18/10 stainless steel with fully rounded edges
• Cooking chamber lighting via LED bar fitted into the door
• Available in bottom or right hand hinged door models
• 5 Levels of direct steam controlled by a electromechanical control panel situated on the left hand side of the door
• The side supports and drip tray can easily be removed for cleaning
• Fitted with 2 bidirectional fan motors for even heat distribution
• IPX3 protection rating against water
• Stackable
• Supplied without trays and grids
• Supplied without stand
• It is recommend that all combi steamers be installed with water treatment system
